Aluminium Expanded Mesh Material Aluminium 5052 for university
facade
Aluminium Storage Shelves Flatted Expanded Metal Wire Mesh Product
Description:
Stretch mesh is a variety of metal screen industry, also known as
steel plate mesh, punching and shearing mesh. A plate-shaped net
with diamond shaped holes is formed by punching, shearing and
stretching metal plates. Common materials include steel plate,
aluminum plate, stainless steel plate, etc.
Stretching net is mainly used for curtain wall decoration,
suspended ceiling, cement for civil construction, protection of
mechanical equipment, handicraft manufacturing, and speaker net
cover. Highway guardrail, stadium fence, road green belt protective
net. The heavy steel plate net can be used for the pedal net of oil
tank trucks, working platforms, escalators and walkways of heavy
machinery, boilers, oil mines, locomotives, 10000 ton ships, etc.
It can also be used as reinforcement in construction industry,
highway and bridge.
Diamond hole metal plate mesh can be used for ceiling decoration,
wall decoration, curtain wall panels, etc. The metal plate mesh has
an open and transparent view
Wild is a new type of metal building materials. It has the
advantages of light weight, high strength, good weather resistance
and corrosion resistance,
Good decorative effect; Strong antifouling property, easy to clean
and maintain; The construction and installation are convenient and
fast.
Aluminum plate mesh metal plate mesh is divided into aluminum plate
stretching protective mesh and aluminum plate punching protective
mesh from the production process.
| Specification | Design Size | Opening Strands | Size of Strands | Overall Thickness | Open Area |
| (Inches) | (Inches) | (Inches) | (Inches) | (%) |
| SWD | LWD | SWO | LWO | Width | Thickness | | |
| 1/2" .051 | 0.5 | 1.2 | 0.375 | 0.937 | 0.093 | 0.051 | 0.158 | 65 |
| 1/2" .081 | 0.5 | 1.2 | 0.375 | 0.937 | 0.093 | 0.081 | 0.186 | 60 |
| 3/4" .051 | 0.923 | 2 | 0.813 | 1.175 | 0.109 | 0.051 | 0.2 | 78 |
| 3/4".081 | 0.923 | 2 | 0.75 | 1.68 | 0.129 | 0.081 | 0.22 | 76 |
| 3/4".081 | 0.923 | 2 | 0.75 | 1.68 | 0.165 | 0.081 | 0.3 | 69 |
| 3/4".125 | 0.923 | 2 | 0.688 | 1.68 | 0.169 | 0.125 | 0.305 | 68 |
| 1-1/2".081 | 1.333 | 3 | 1.188 | 2.5 | 0.128 | 0.081 | 0.24 | 85 |
| 1-1/2".125 | 1.333 | 3 | 1.188 | 2.5 | 0.162 | 0.125 | 0.3 | 79 |
| Note: Special size and specification can be customized. |
Flatted expanded metal mesh as follows:
| Material | plain steel sheet, galvanized steel sheet, stainless steel sheet, copper sheet, brass sheet, aluminum sheet |
| Hole shape | Diamond or custom your need |
| Mesh size | 800*1000mm, 900*1400mm, 1000*1800mm, 1200*2000mm, 1500*2400mm, 1800*2800mm, 2000*3000mm, or as your custom |
| SWD | MAX 120mm |
| LWD | MAX 300m |
Flatted expanded metal mesh also called:
expanded metal mesh screen
expanded metal mesh panels
flattened expanded metal mesh
small hole steel expanded metal mesh
expanded sheet metal mesh
fine expanded mesh panels

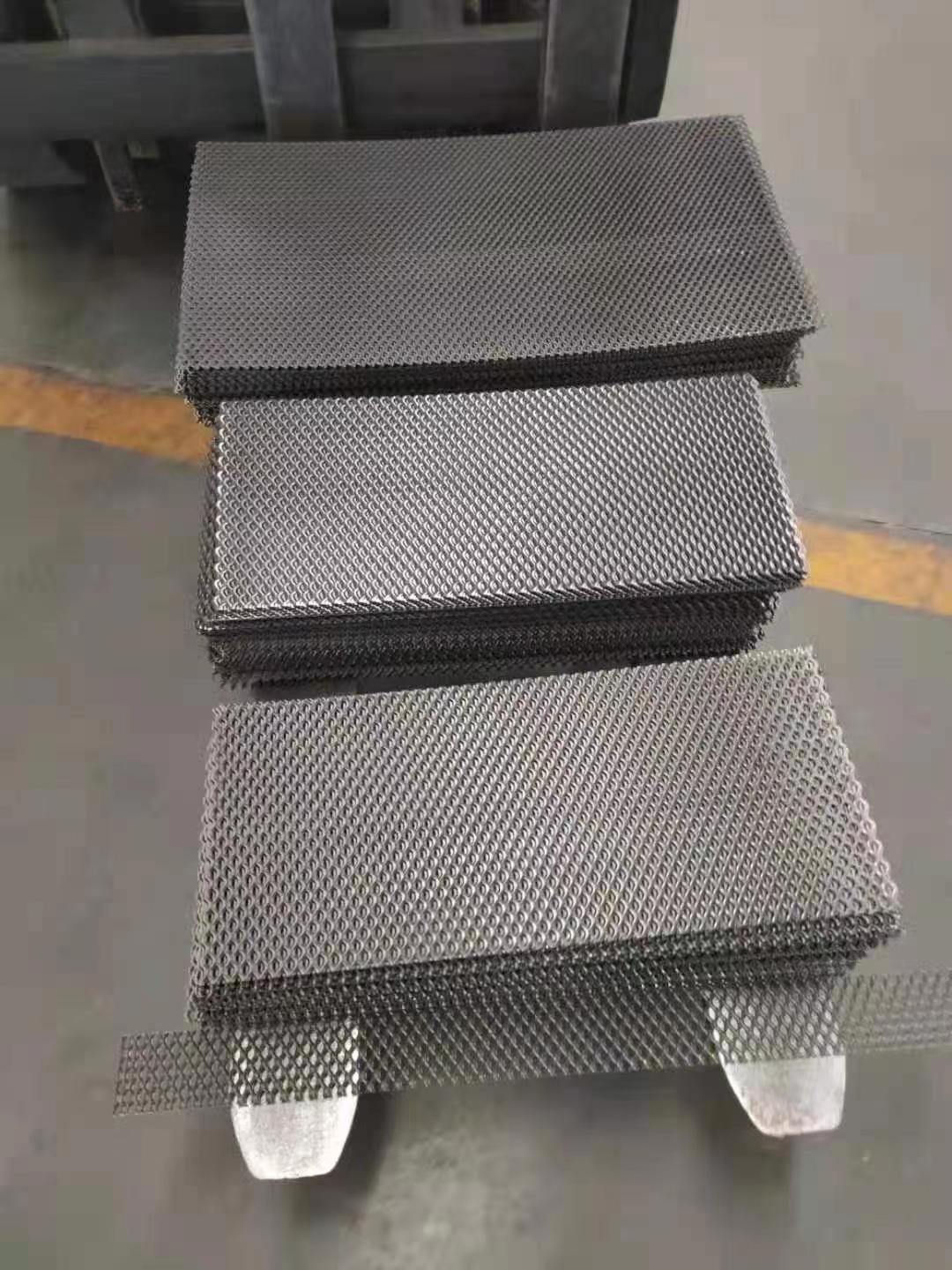

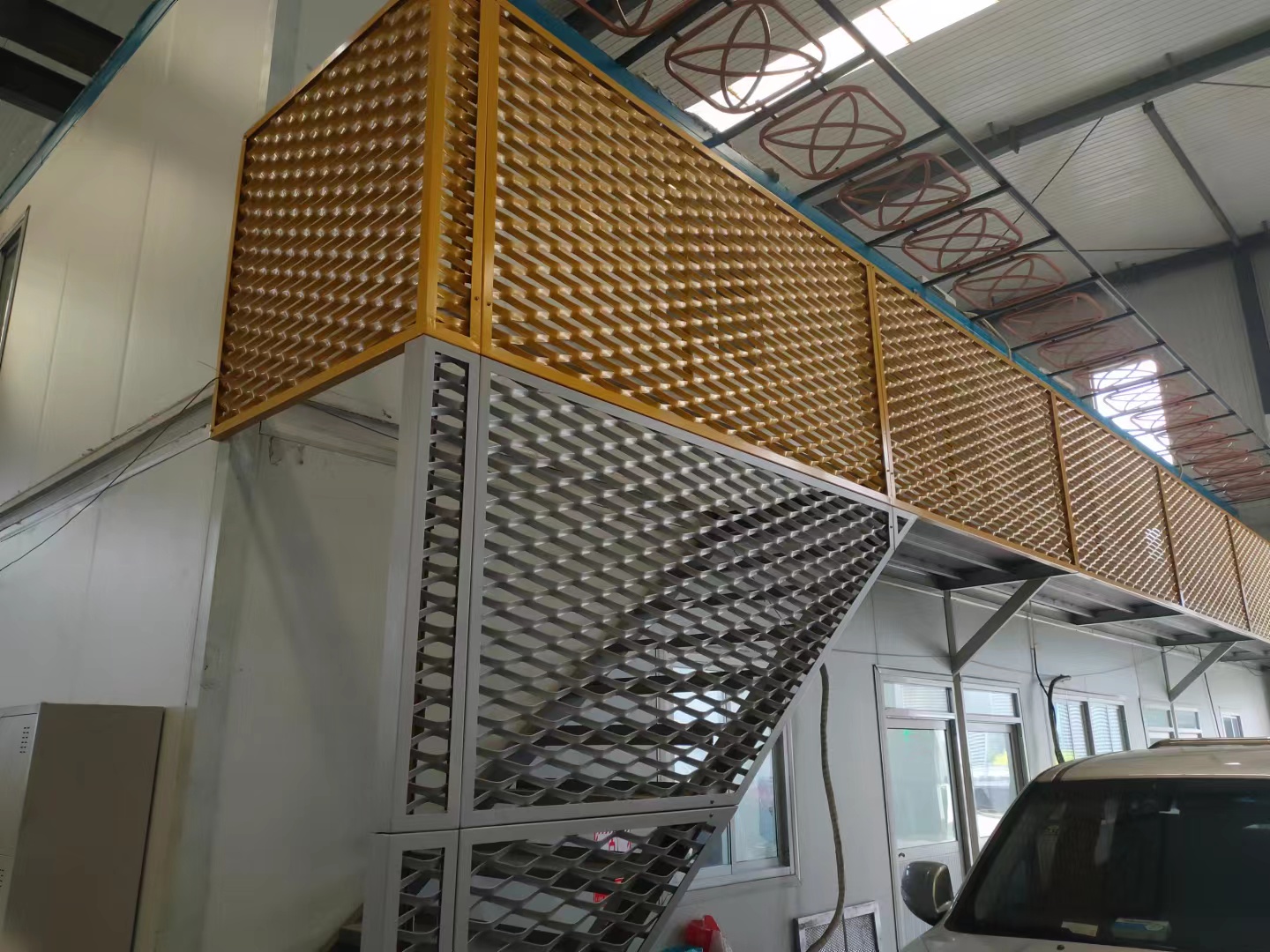

Expanded metal mesh Product pictures:
FAQ
1. Can you make custom panels if I have a design?
Yes,we can OEM according to your detailed drawings.
2. Can I get a pcs of your products sample?
Yes, free samples will be provided anytime.
3. What type of materials do you use for your products?
Carbon steel plate,Stainless steel plate,Aluminum and Aluminum
Alloy plate,Cooper plate,Galvanized plate etc.
Special material also available
4. Do you have any certificate?
Yes,we have ISO9001,ISO14001,BV certificate,SGS certificate.
