    1mm Stainless Steel Cable Mesh Hole Size 7 × 7 7 × 19 1 × 19cm Strong Flexible

    Ask Lasest Price
    Brand Name : Source Wire Mesh
    Model Number : SWM-004
    Certification : ISO9001/ISO:14001/ISO:18001
    Price : $30.00-$55.00/ROLL
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Square Meter/Square Meters per Week
    Delivery Time : 7days
    • Product Details
    • Company Profile

    1mm Stainless Steel Cable Mesh Hole Size 7 × 7 7 × 19 1 × 19cm Strong Flexible

    Stainless Steel Cable Mesh Hole Size 7 × 7, 7 × 19 Or 1 × 19cm - Strong And Flexible


    Stainless Steel Cable Mesh - Strong And Flexible Product Description:


    Ferrule type cable mesh has similar physical properties to knotted cable mesh , but different combination style - seamless ferrules that combine cables together to form a resilient metal fabric with rhombus holes. This flexible mesh gracefully adapts to your most challenging 3-D tensile projects and various applications owing to following advantages:



    • High transparency
      These meshes are pulled into diamond patterns to let ample light and air pass through. Owing to high transparency, they are widely applied to animal enclosure, animal cages, aviary netting, ceiling and parking garages. With dull, silver sheen, they blend into the surrounding environment easily.
    • High strength
      Quality material and seamless ferrules impart high strength to the cable mesh and make it appropriate to projects requiring high load capacity and dependability, especially public applications subjected to vandalism and security fences for rockfall protection.
    • Flexible & impact resistance
      The advantages of impact resistance mainly lies within the flexible structure which make this cable mesh ideal to be used as balustrade for bridges, path and stairs. Meanwhile, its flexible structure also allows for numerous creativity in planning and execution of projects.
    • Non-flammable
      Our range of ferrule type cable mesh is environmental friendly and non-flammable so it functions well in fire escape.
    • Anti-climb
      Small rhombus patterns effectively prevent a foothold and climbing actions so they are widely used in museums, schools, recreational fields and various children's activity areas.
    • Weather resistant
      Made of quality stainless steel AISI 304, 304L, 316, 316L, our ferrule type cable mesh can be advantageous when applied to the harshest conditions thanks to its superb resistance to bad weather and ultraviolet. Thus, additional anti-corrosive coating is not needed.
    • Easy installation & maintenance-free
      Ferrule type cable mesh can be fixed to the steel tubular frame easily and quickly using simple hardware. Meanwhile, it retains original shape and resiliency indefinitely so that the needs of adjustment periodically is eliminated. In addition, it requires no maintenance, let alone the needs of caustic cleaners.

    Specification:

    Mesh size (W × H) mmWire diameter
    1 mm1.5 mm2 mm3 mm4 mm
    25 × 43FCM-A1FCM-B1
    30 × 52FCM-A2FCM-B2
    35 × 61FCM-A3FCM-B3FCM-C3
    40 × 69FCM-A4FCM-B4FCM-C4
    50 × 87FCM-A5FCM-B5FCM-C5FCM-D5FCM-E5
    60 × 104FCM-A6FCM-B6FCM-C6FCM-D6FCM-E6
    70 × 121FCM-A7FCM-B7FCM-C7FCM-D7FCM-E7
    80 × 139FCM-A8FCM-B8FCM-C8FCM-D8FCM-E8
    100 × 173FCM-A9FCM-B9FCM-C9FCM-D9FCM-E9
    120 × 208FCM-A10FCM-B10FCM-C10FCM-D10FCM-E10
    140 × 242FCM-A11FCM-B11FCM-C11FCM-D11FCM-E11
    160 × 277FCM-A12FCM-B12FCM-C12FCM-D12FCM-E12
    180 × 312FCM-A13FCM-B13FCM-C13FCM-D13FCM-E13
    200 × 346FCM-A14FCM-B14FCM-C14FCM-D14FCM-E14
    Any custom sizes is available.
    Strength of cable mesh
    Construction7 × 77 × 19
    Diameter1 mm1.2 mm1.5 mm2 mm2.5 mm3 mm4 mm5 mm
    Tensile strength (N/mm2)17701770177015701570157015701570
    Breaking load (lbs.)AISI 304180270360630182011137123833731
    AISI 3161352023155628771169211332

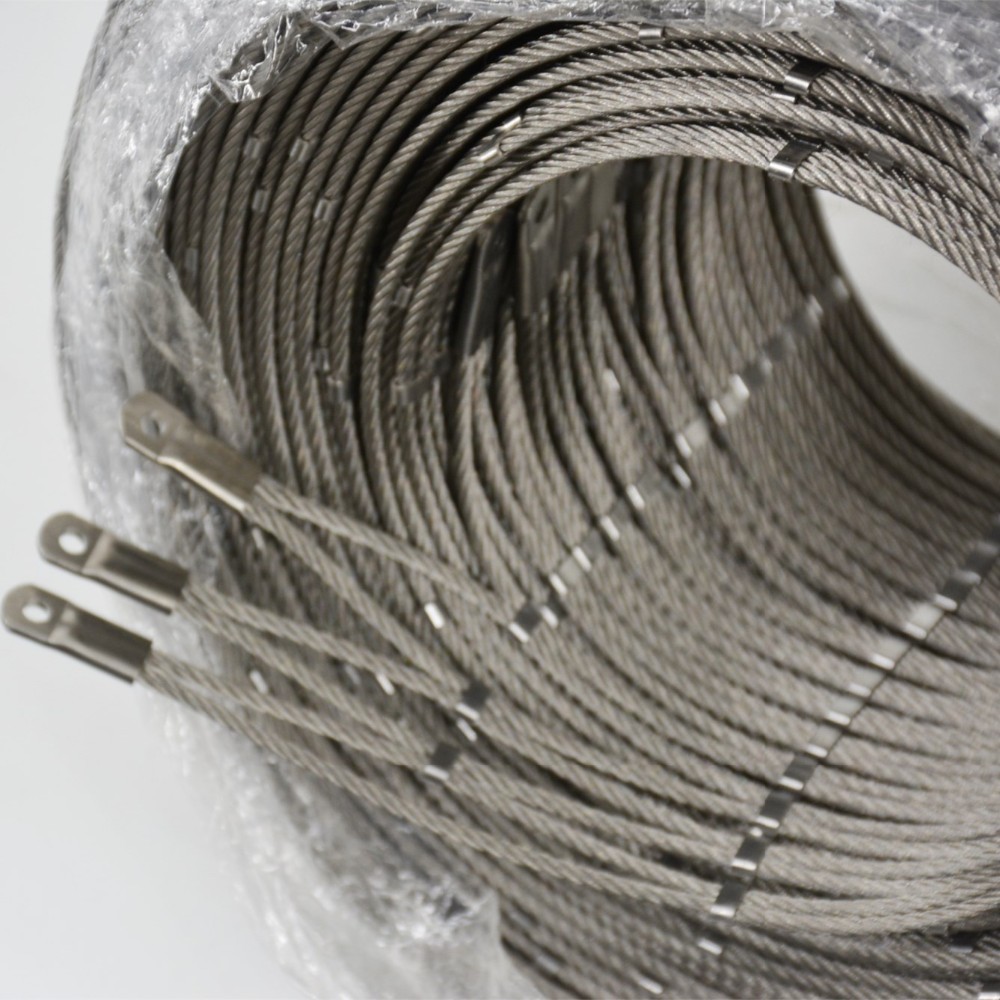

    Products Images:

    1mm Stainless Steel Cable Mesh Hole Size 7 × 7 7 × 19 1 × 19cm Strong Flexible

    1mm Stainless Steel Cable Mesh Hole Size 7 × 7 7 × 19 1 × 19cm Strong Flexible1mm Stainless Steel Cable Mesh Hole Size 7 × 7 7 × 19 1 × 19cm Strong Flexible

    Application

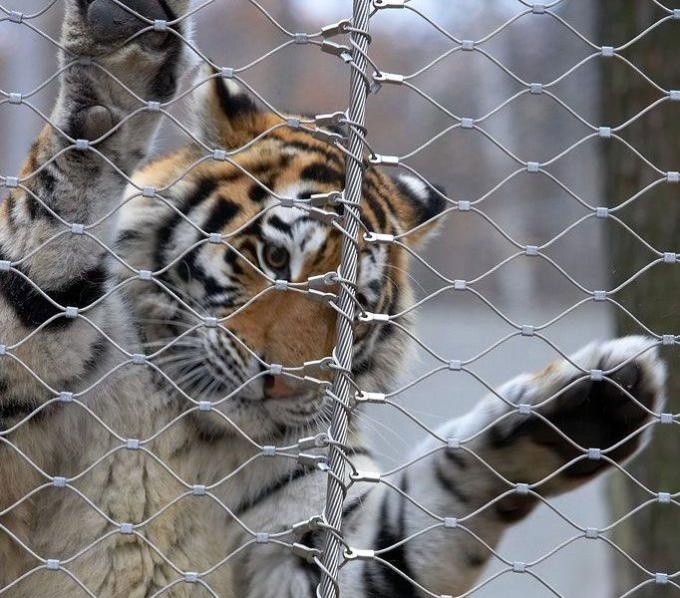

    * Building Facade screens * Green wall systems * Balustrade & Railing * Bird protection netting, * Security platform fence. Isolate fence,Garden fence, * Animal enclosures in zoo

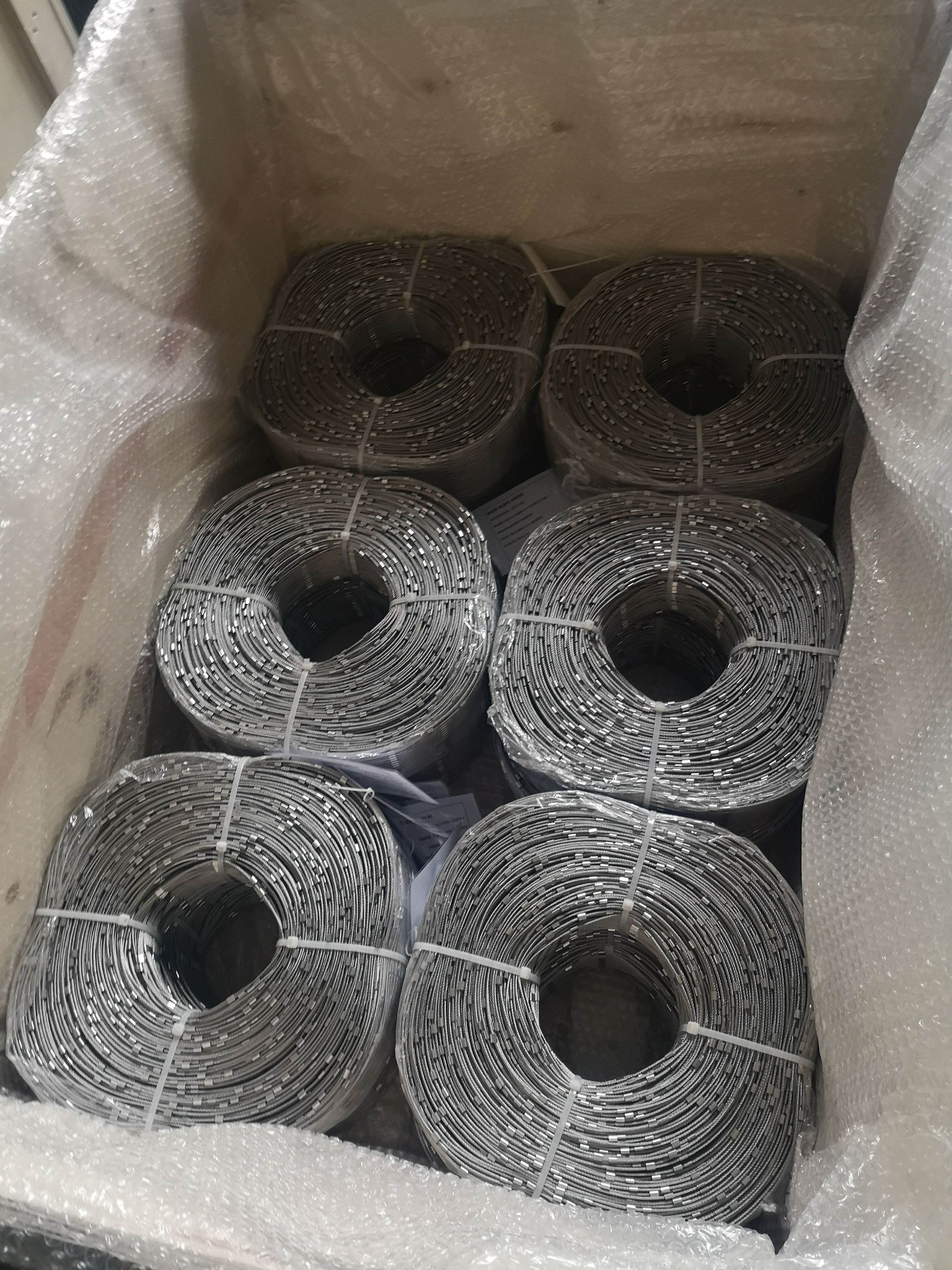

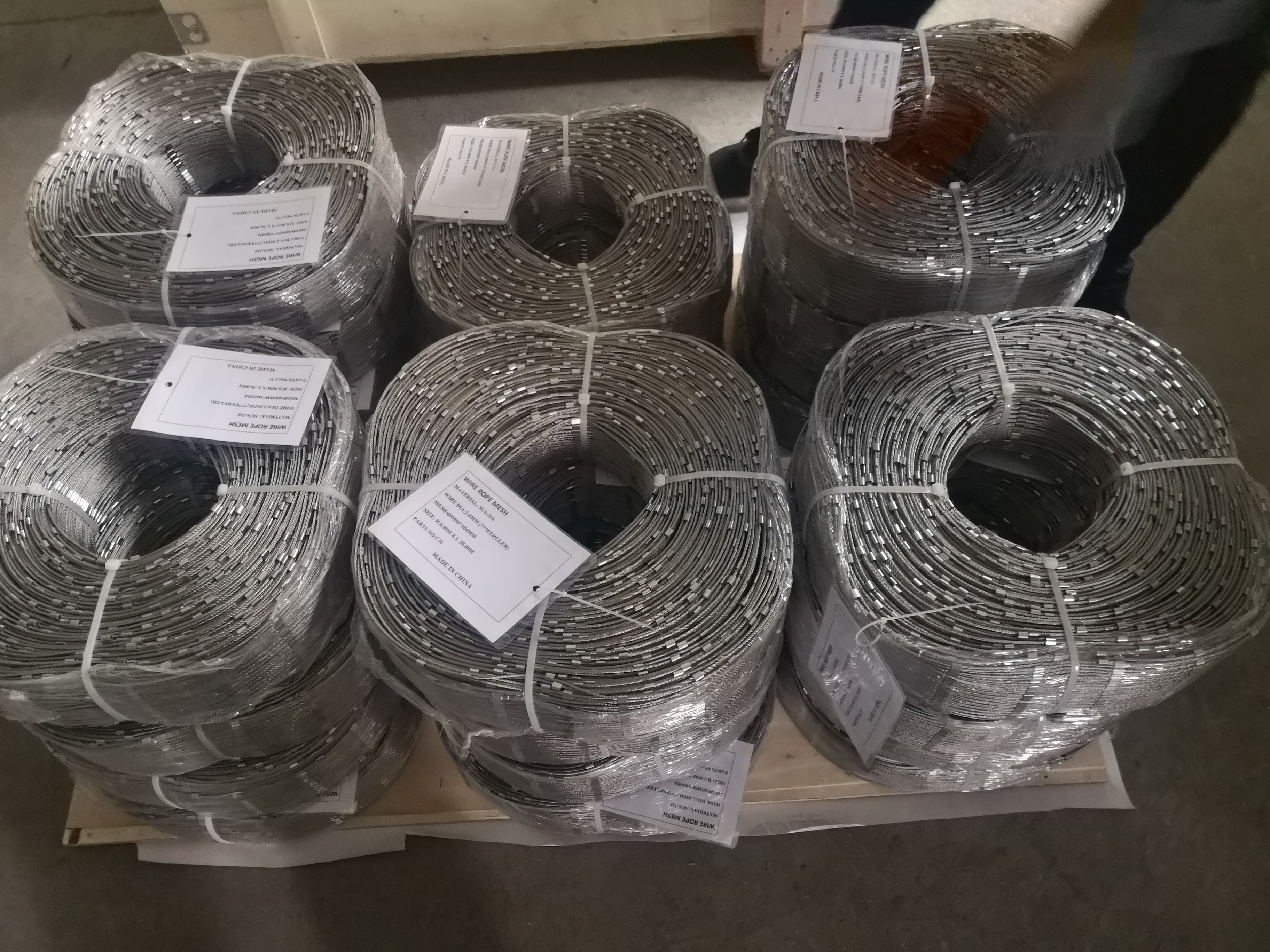

    Packing & Delivery
    Company Profile
    Anping Source wire mesh co.,Ltd
    Specialized in manufacturing flexible architectural stainless steel cable mesh products.
    located at Anping County, Hengshui, Hebei, China.
    Since 2010.Located Anping city.China.
    Above 15 production lines..OEM & ODM service.We have the CE and ROHS certificates.
    Experienced large and special shape mesh.
    90% exported Europe,Australia,USA, Middle East ,HongKong etc.
    Quickly delivery time.Design.Manufacturer & assistant install.

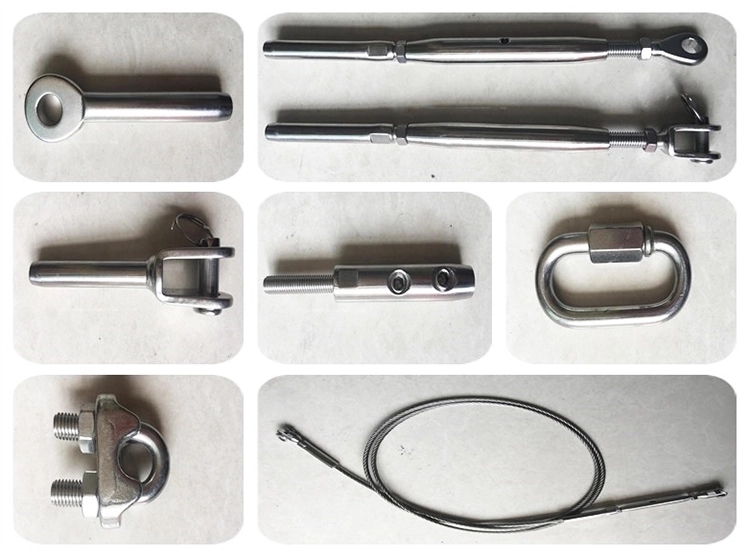

    Installation Accessories
