0.4-0.5mm thickness Filter Round Hole Perforated Metal Mesh Tube
Perforated Metal Tubes description:
Perforated Metal Tubes is made of standard perforated sheet,through
welded,then make in different size
tubes.
Our Perforated Metal Tubes can design big type and small type.The
size including height,diameter can
custom your need or application.
Perforated Metal Tubes specification list:
Hole
Diameter | Staggered Centers
| Sheet Thickness | Open Area |
| 0.045'' | 1.14mm | 0.06 | 0.032'' | 0.81mm | 37.00% |
| 1/16'' | 1.59mm | 1/8'' | 0.032'',0.040'' | 0.81mm,1.02mm | 23.00% |
| 3/32'' | 2.38mm | 5/32'' | 0.040'',0.063'' | 1.02mm,1.60mm | 33.00% |
| 7/64'' | 2.78mm | 3/16'' | 0.32'' | 0.81mm | 29.00% |
| 1/8'' | 2.78mm | 3/16'' | 0.320'',0.040'',0.050'', 0.063'',0.125'' | 0.81mm,1.02mm,1.27mm, 1.60mm,3.17mm | 40.00% |
| 5/32'' | 3.97mm | 3/16'' | 0.320'',0.063'',0.090'' | 0.81mm,1.60mm,2.29mm | 63.00% |
| 3/16'' | 4.76mm | 1/4'' | 0.320'',0.040'',0.050'',0.063'' | 0.81mm,1.02mm,1.27mm,1.60mm | 50.00% |
| 3/16'' | 4.76mm | 3/8'' | 0.040'', | 1.02mm | 23.00% |
| 1/4'' | 6.35mm | 5/16'' | 0.063'' | 1.60mm | 58.00% |
| 1/4'' | 6.35mm | 3/8'' | 0.063'',0.125'' | 1.60mm,3.17mm | 40.00% |
| 1/2'' | 12.7mm | 11/16'' | 0.063'' | 1.60mm | 48.00% |
| Material | stainless steel , iron, galvanized , aluminum, pvc coated,etc |
| Hole shape | Round, Rectangular,Square, Triangle, Diamond, Hexagonal,etc |
| Thickness | usually 0.5mm,1mm,1.2mm,1.5mm,2.0mm etc |
| Hole size | 0.6-20mm,ect |
| Mesh/inch | 20-635mesh |
| Openging rate | 45%,60%,85% etc |
| Surface Treatment | Electric galvanized, Hot dipped galvanized, oxidation treatment etc |
Perforated Metal Tubes application:
Perforated metal tube can be used for decorating, cage ventilation,
antiskid. At the same time, it can be as
the guard of central heating, air conditioning equipment, different
sorts of chassis and machines. Another
important use is filtration. For instance, filter, filter pipe,
water and gas treatment equipment.

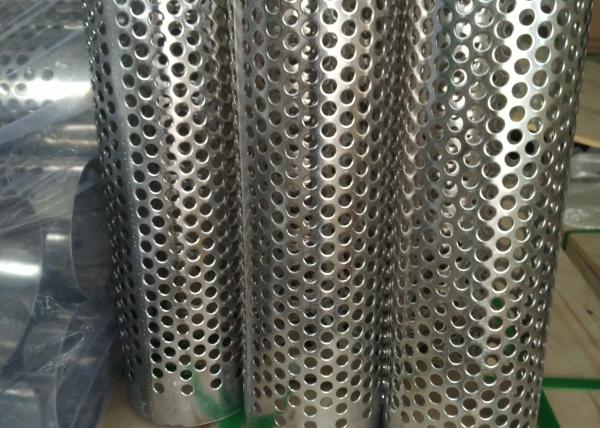

Product Show:
Packing Details:
Q: Are you a trading company or manufacturer?
A: We are manufacturer with 26 years production experience,and we
have our own factory in local Anping.
Q: About visit the your factory?
A:Yes,welcome.
Q: Can you make customized sevice ?
A: Yes,we can manufacture according you required or your drawing.
Q: Can you provide the sample?
A: Yes,free sample will be provided anytime.
Q: What is the payment term?
A: Usually payment term is 30% by T/T in advance,the balcance by
T/T against the fax copy of B/L,or L/C.
Q: What type of materials do you use for your products?
A: Carbon steel plate,Stainless steel plate,Aluminum Alloy
plate,Cooper plate,Galvanized Plates etc. or special material also
available.
Q: Mode of transportation?
A: By sea or by air or by courier or by train.
Q: How about the delivery time?
A: Normally within 15days after receiving the advance
payment.Samples will be prepared within 1-3days.
