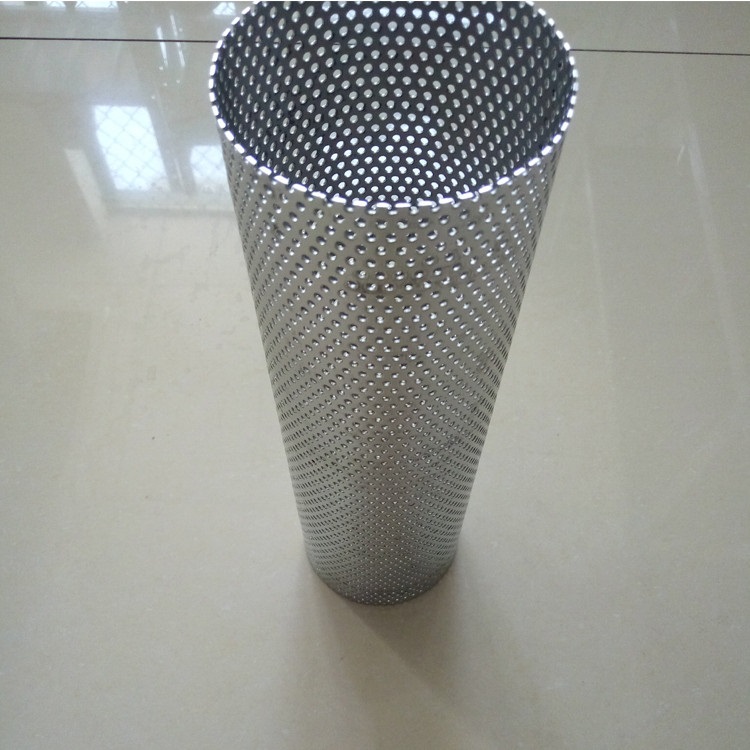

Stainless steel304 perforated filter Wire Mesh Filter Element
perforated filter Wire Mesh Filter Element Decription:
Material:stainless steel304,316,304L,316L
overall dimensions can construction according to customer's request
.
use:liquid
filter candle/oil stainless steel filter element/ water steel mesh
filter
Product material: SUS304, 304 L, 316, 316 Lstainless steel woven
wire mesh, sintered wire mesh, stainless steel sintered sticky,
support and shielding sleeve made from stainless steel mesh .
Product features: (1) there is absolutely no material falls off
phenomenon. (2) high temperature resistant, can be in - 270-400 ° C
temperature long-term security. Both high temperature and low
temperature stainless steel will not precipitate and harmful
material, material stable performance, carrying quantity, high
filtration precision, accurate. (3) the high corrosion resistance,
not easy to damage, small pressure loss, large filtering area. (4)
particularly easy to clean, long service life.
Product specifications: filtration precision (μ m) 2-200, overall
dimensions, filtration precision and filtration area, under
pressure, can construction according to customer's request .
Main application: petroleum, chemical, food, environmental
protection, heavy machinery, film, medicine, water treatment, high
temperature gas filtration.
Scope of application: Petroleum, chemical industry, metallurgy,
aviation, electronics, electric power, pharmaceutical,
environmental protection, nuclear power, nuclear industry, natural
gas, refractory materials, fire equipment in areas such as
liquid-solid, gas-solid and gas-liquid separation and purification
.
Cylindrical Filter Elements:
The main material for pipe filter elements: Stainless steel wire
cloth laminated sheets consisted of fiver layer woven wire cloth by
vacuum sintering.
Directions of Pipe Filter Elements Model: CF-D/L-R
D-Outside Diameter
L-Length
R-Filtration Rating
Stainless Steel Pipe Filter Elements Advantages:
High strength, no need of support
No possibility of media migration occurring
Pipe type stainless steel filter elements have wide operating
temperature range
This type of filter elements are strongly corrosion resistant
Pipe filter elements are very easy to clean and offer long service
life
Available filtration rating of pipe filter elements (μm): 2, 5, 10,
20, 40, 75, 100, 150, 200
Sizes of the cylindrical filter elements: Any outline size is
available at customer's requirement.
Nominal Filter Rating
(µm) Control Layer
(mesh) Permeability
(%) Resistance
Factor
(cm) Bubble Point Pressure
(mm H2o) Thickness
(mm) Weight
(kg/m2)
2 325x2400 38 14x105 280-640 1.7 8.4
5 200x1400 38 12x105 250-600 1.7 8.4
10 165x1400 38 7x105 220-550 1.7 8.4
20 165x800 38 4x105 180-450 1.7 8.4
40 50x250 38 4x105 150-400 1.7 8.4
Product Images:
