The wind and dust suppression nets have a wide range of
applications.In agriculture,wind-proof nets are used to provide
microclimates for crops;in areas with severe desertification,they
are used to reduce sand and gravel accumulation;in environmental
protcction,wind-proof nets can reduce bulk materials.Escape during
object loading and unloading and stacking.
1. Give number of sheets needed.
2. Give gauge or thickness of metal.
3. Kind of metal.
4. Give size of perforation, shape, centers and arrangement of
holes.
5. Size of sheet.
6. Submit sketch or print when possible.
Windbreak Fence Panels:
As an effective product to solve wind and dust pollution, windbreak
panel made from perforated metal is also called wind dust net.
The wind and dust reduction is 65% – 85%.
Its materials include aluminum-zinc coated steel plate, galvanized
steel plate, cold-rolled steel plate and stainless steel sheet.
Windbreak panel has 4 types: single peak, twins peaks, three peaks
and five peaks windbreak panels.
With high strength, toughness, anti-corrosion and easy
installation, windbreak wall is widely used in power plants, coal
mines and coking plants in order to save coal field and prevent
wind and dust.
Windbreak Fence Panels Feature:
1. High strength and toughness.
2. High temperature resistance and anti-corrosion.
3. Economic benefit of reducing the material losses in open yard.
4. Improve the living conditions of nearby residents.
5. Long service life.
Windbreak Fence Panels Application:
1. Power plant wind reducing wall.
2. Coal mines wall.
3. Coking plants wall.
4. Coal washing plant wall.
5.Ports and harbors wall.
6. Industrial construction areas.
7. Temporary construction site of road works
8. Dust controlling in desert and road embankment.
Windbreak Fence Panels Specification:
1. Material:Aluminum-zinc coated steel plate, galvanized steel
plate, cold-rolled steel plate, stainless steel sheet.
2. Windbreak panel length:0.5 m – 10.0 m.
3. Perforation holes shape:Round,oval,rectangle..
4. Holes diameter:6 mm – 10 mm.
5. Aperture opening rate:25% – 40%.
6.:Color:Yellow,blue,orange,green,etc.
7. Package:In wooden cases or in steel frames.
8. Types:Single peak panel,twins peaks panel,three peaks panel and
five peaks panel.
| Table 1: Specifications of 4 Types of Windbreak Panels |
| Pattern | Width
(mm) | Peak Height
(mm) | Plated Thickness
(mm) |
| Single peak windbreak panel |
| 250–300 | 50–80 | 0.6–1.5 |
| 300–450 | 70–90 | 0.6–1.5 |
| 450–500 | 90 -100 | 0.6–1.5 |
| Twins peaks windbreak panel |
| 400–600 | 50–100 | 0.5–1.5 |
| 700–900 | 90–100 | 0.5–1.5 |
| Three peaks windbreak panel |
| 810–940 | 70 | 0.4–1.5 |
| Five peaks type anti-wind and dust board |
| 940 | 15, 20 | 0.6–1.5 |

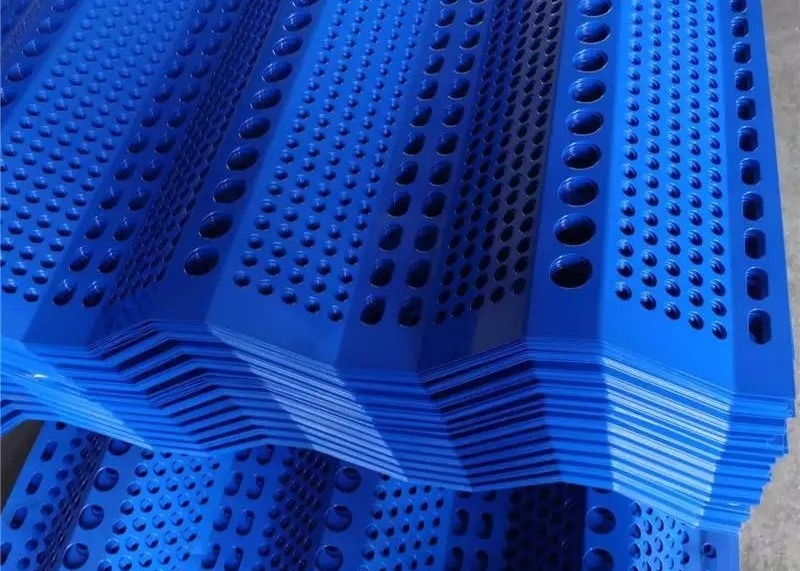

Product Images:
