SS 316 Stainless Steel Wire Rope Ferrule Mesh Netting For Balustrade

SS 316 Stainless Steel Wire Rope Ferrule Mesh Netting For Balustrade Product Description

Stainless steel cable mesh is ideal for zoo, widely used in indoor and outdooranimal fences, bird cages, beast fences and zoo fences. Its excellent decorative value and durability make it suitable for various sites, likezoos, safari parks, parks, museums, reserves, ocean parks, amusement parks, decorations, etc.

Is its delicate structure. Especially in zoo animal enclosures or protective nets, the visual impairment due to the unavoidable barrier is minimal.

Main Featuers:

1.The mesh is clipped to the cable.

2.The hole size and diameter can be modified.
3.It can be made to customer orders and statically tested – especially suitable for facades.
4.High strength,strong toughness,free-angles curving and fold,easy for transportation and installment.
5.Anti-corrosive,resist the rust,can be repeated use.
6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8.Without toxic material,safety,environmental protection.

Spec List

Cable diameter		Mesh opening size		Nominal break
inch	mm	inch	mm	lbs.
1/8	3.2	4x4	102x102	1600
1/8	3.2	3x3	76x76	1600
1/8	3.2	2x2	51x51	1600
3/32	2.4	4x4	102x102	920
3/32	2.4	3x3	76x76	920
3/32	2.4	2x2	51x51	920
5/64	2.0	3x3	76x76	676
5/64	2.0	2x2	51x51	676
5/64	2.0	1-1/2x 1-1/2	38x38	676
1/16	1.6	3x3	76x76	480
1/16	1.6	2x2	51x51	480
1/16	1.6	1-1/2x 1-1/2	38x38	480
1/16	1.6	1x1	25.4x25.4	480
3/64	1.2	1-1/2x 1-1/2	38x38	270
3/64	1.2	1x1	25.4x25.4	270
3/64	1.2	4/5x4/5	20x20	270

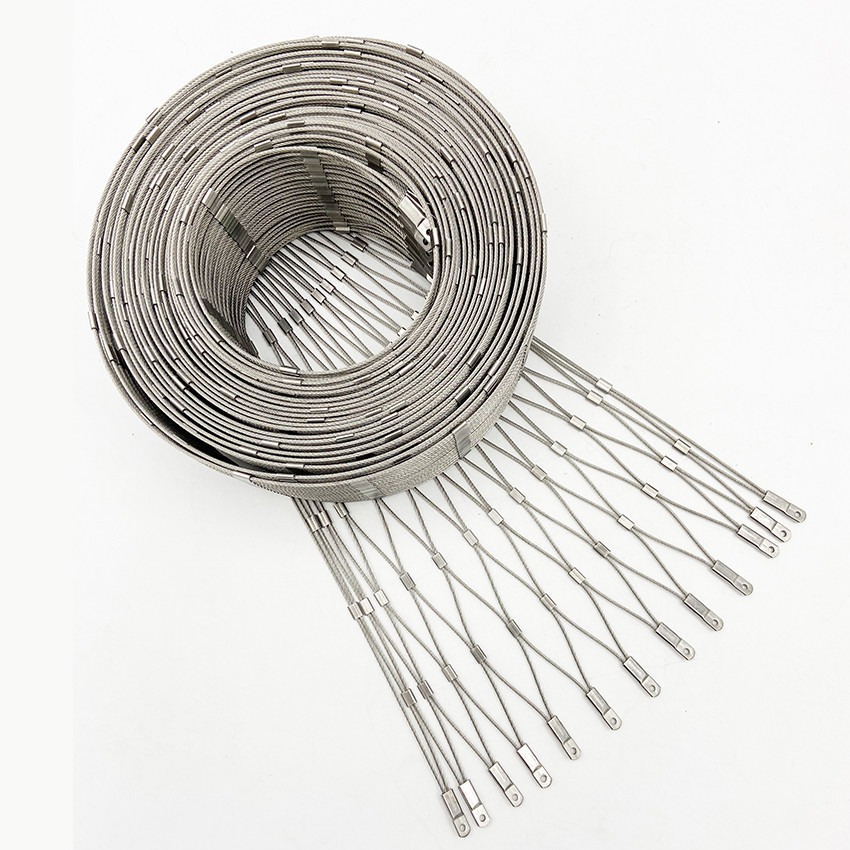

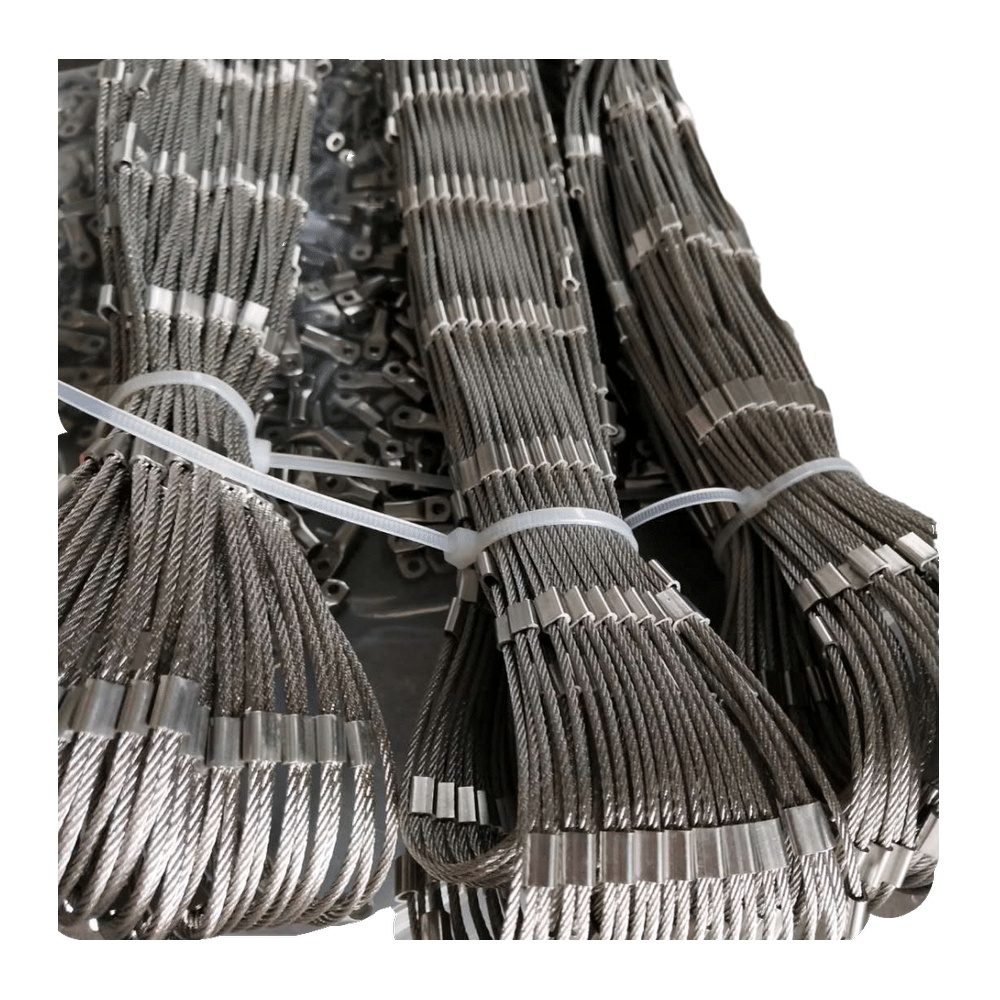

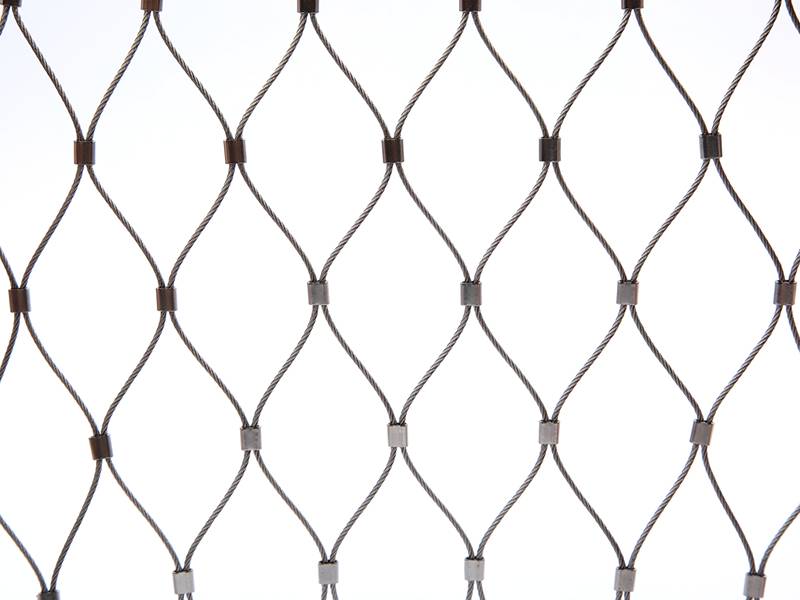

Product Display

Product Application

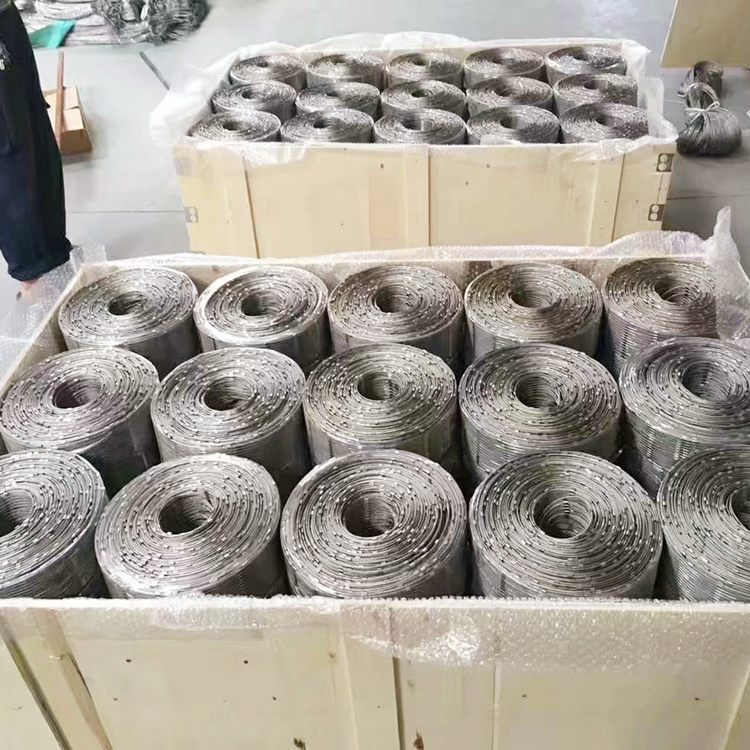

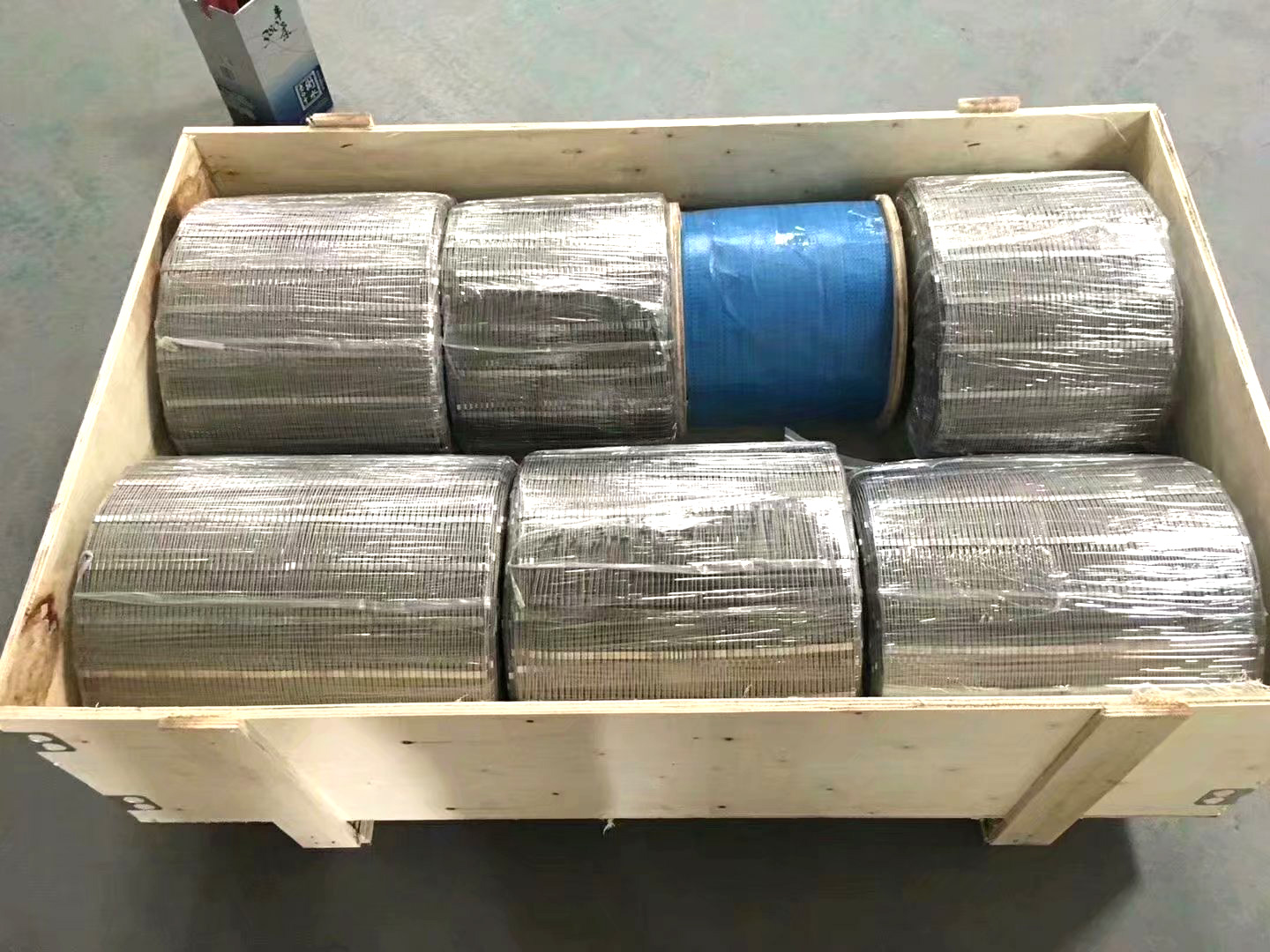

Packing & Delivery

FAQ

1.How to make an inquiry of rope mesh?

You need to provide material, rope diameter, rope construction, mesh apertures,mesh length & width and the quantity to ask an offer, you can also indicate if you have any special requirement. We'll provide formal quotatiom list after your inquiry received.

2.Could you provide rope mesh sample ? How long does the sample need to be prepared?
Yes, we can provide sample . Sample production time is 5~7 days

3. Can you tell me how to install the rope mesh?

Yes, we have professional engineers to help you install the rope mesh. And can solve any problems you have in the installation

4. Can you provide customized services?
Yes,we can. We can produce according to your needs, and can recommend you a cost-effective product for you.

5.What is your MOQ ?
There is no minimum order quantity, we will do the best to support you.
