200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant

    Buy cheap 200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant from wholesalers

    Buy cheap 200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant from wholesalers
    • Buy cheap 200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant from wholesalers
    • Buy cheap 200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant from wholesalers
    • Buy cheap 200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant from wholesalers
    • Buy cheap 200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant from wholesalers

    200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant

    Ask Lasest Price
    Brand Name : Source Wire Mesh
    Model Number : 5-200mesh
    Certification : ISO:9001
    Price : $0.65-$7.5/square meter
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500000 Square Meter/Square Meters per Year
    Delivery Time : 5-10days
    • Product Details
    • Company Profile

    200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant

    200 micron stainless steel wire mesh


    200 micron stainless steel wire mesh product description:


    Stainless Steel Wire Mesh is the most basic type of weaves. In plain weave, the warp and weft are aligned

    so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one,

    then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went

    over, and vice versa.


    Features:

    • High tension with stable ability
    • Super precision, uniform wire diameter and aperture
    • Low elongation
    • High flexibility
    • Excellent corrosion resistance
    • Non-electrostatic
    • Good heat-melting resistance
    • Suitable for heat-melting ink
    • Good solvent resistance
    • Long service life

    Applications:

    PCB printing, filteration, Processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

    Details list of Stainless Steel Woven Mesh:


    Wire Material
    SU302, 304, 316, 304L, 316L, 310S, 321 etc
    Technique
    Plain Woven
    Weave type
    Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave, Reversed Dutch Weave etc
    Mesh Count
    1mesh ---650 mesh
    Wire Diameter
    0.025 mm---3 mm or custom
    Width
    40 mm ---210 mm
    Packing
    Water-Proof ,Plastic Paper, Wooden Case ,Pallet
    Length
    10m/roll
    Performance
    Acid resistance, alkali resistance, temperature resistance, wear resistance and other properties

    Mesh (inch)
    Wire diameter
    (inch)
    Aperture (inch)
    Mesh
    (inch)
    Wire diameter
    (inch)
    Aperture
    (inch)
    2
    0.063
    0.437
    ----------
    80
    0.006
    0.007
    5
    0.041
    0.159
    100
    0.004
    0.007
    10
    0.025
    0.075
    120
    0.037
    0.006
    14
    0.020
    0.051
    150
    0.003
    0.004
    18
    0.017
    0.039
    180
    0.002
    0.003
    20
    0.016
    0.034
    200
    0.002
    0.003
    24
    0.014
    0.028
    300
    0.005
    0.002
    30
    0.009
    0.024
    500
    0.001
    0.001
    40
    0.010
    0.015
    635
    0.001
    0.001
    60
    0.007
    0.010

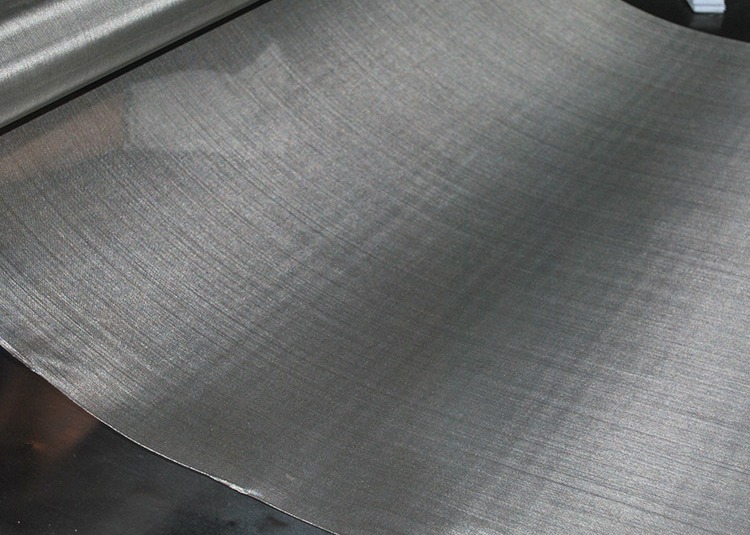

    Product Display:


    200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant


    Packing Detail:


    200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant


    200 Micron Stainless Steel Wire Mesh Plain cloth wear resistant
