    Hot Dipped Galvanized Razor Blade Fencing Wire Barbed 65mm Length CBT 65

    Ask Lasest Price
    Brand Name : Source Wire Mesh
    Model Number : UJ-RBW004
    Certification : ISO9001
    Price : $350.00-$850.00/TON
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 Ton/Tons per Month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    Hot Dipped Galvanized Razor Blade Fencing Wire Barbed 65mm Length CBT 65

    High Quality Hot Dipped Galvanized CBT-65 Concertina Razor Wire


    Razor Barbed Wire Product Description:


    Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.


    Concertina Wire Materials:


    Blade: steel plate by one-time punching moulding
    or stainless steel plate by one-time punching moulding
    Wire: hot dipped galvanized metal wire
    hot dipped galvanized steel wire or stainless steel wire


    Specification List:


    Razor Wire Size Specifications
    Peference Model
    Thickness (mm)
    Wire Diameter (mm)
    Barb Length
    (mm)
    Bard Width
    (mm)
    Bard Spacing
    (mm)
    BTO-12
    0.5±0.05
    2.5±0.1
    12±1
    15±1
    26±1
    BTO-15
    0.5±0.05
    2.5±0.1
    18±1
    15±1
    33±1
    BTO-22
    0.5±0.05
    2.5±0.1
    02±1
    15±1
    34±1
    BTO-28
    0.5±0.05
    2.5±0.1
    28
    15
    45±1
    CBT-30
    0.5±0.05
    2.5±0.1
    30
    18
    45±1
    CBT-60
    0.6±0.05
    2.5±0.1
    60±2
    32±1
    100±1
    CBT-65
    0.6±0.05
    2.5±0.1
    65±2
    21±1
    100±1
    Outside Diameter
    No. of Loops
    Standard Length per Coil
    Razor Type
    Notes

    450mm
    33
    7M-8M
    CBT-60, 65
    Single Coil
    500mm
    56
    12M-13M
    CBT-60, 65
    Single Coil
    700mm
    56
    13M-14M
    CBT-60, 65
    Single Coil
    960mm
    56
    14M-15M
    CBT-60, 65
    Single Coil
    450mm
    56
    8M-9M (3clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    500mm
    56
    9M-10M (3clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    600mm
    56
    10M-11M (3clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    600mm
    56
    8M-10M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    700mm
    56
    10M-12M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    800mm
    56
    11M-13M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    900mm
    56
    12M-14M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    960mm
    56
    13M-15M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    980mm
    56
    14M-16M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type

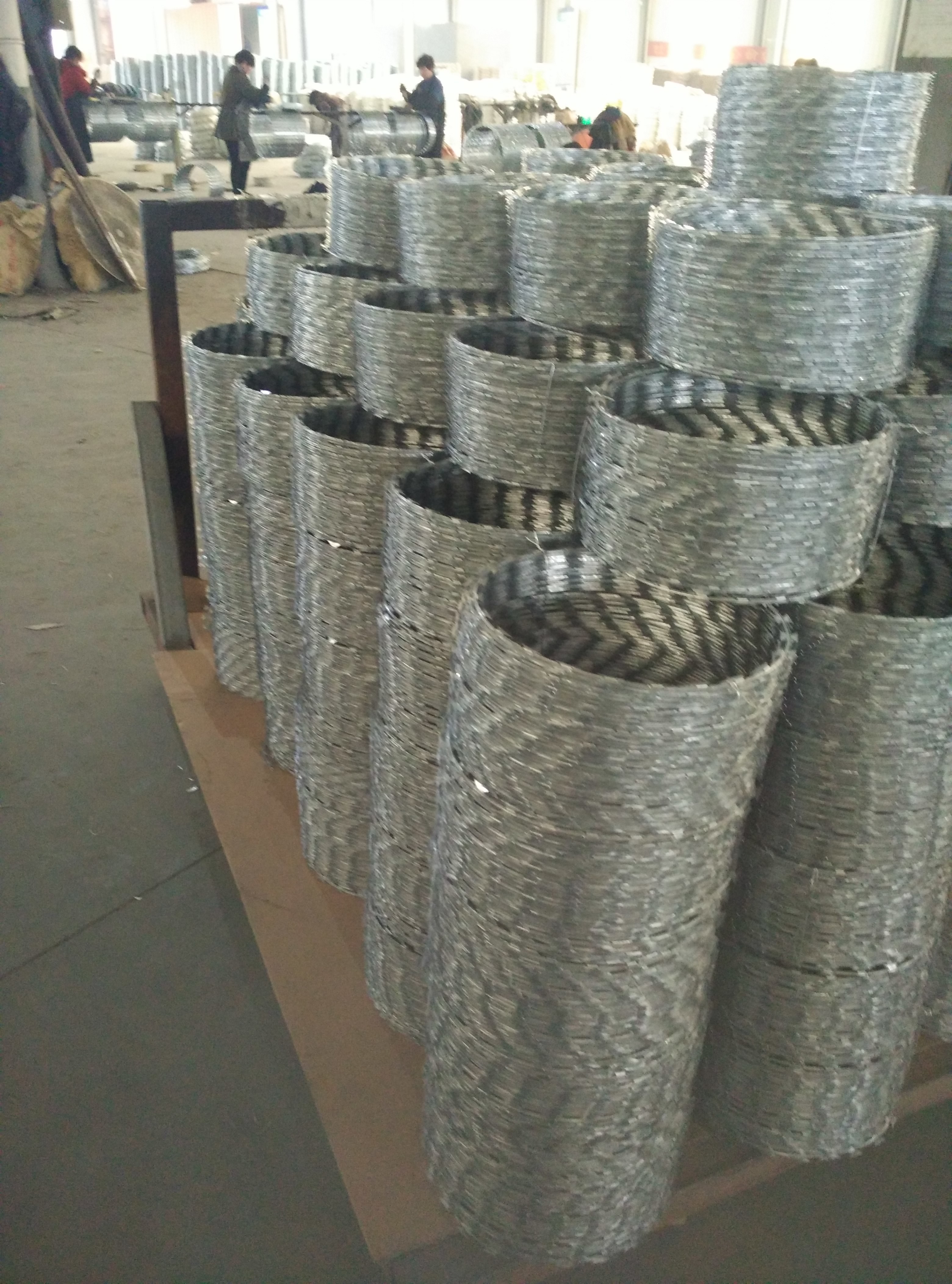

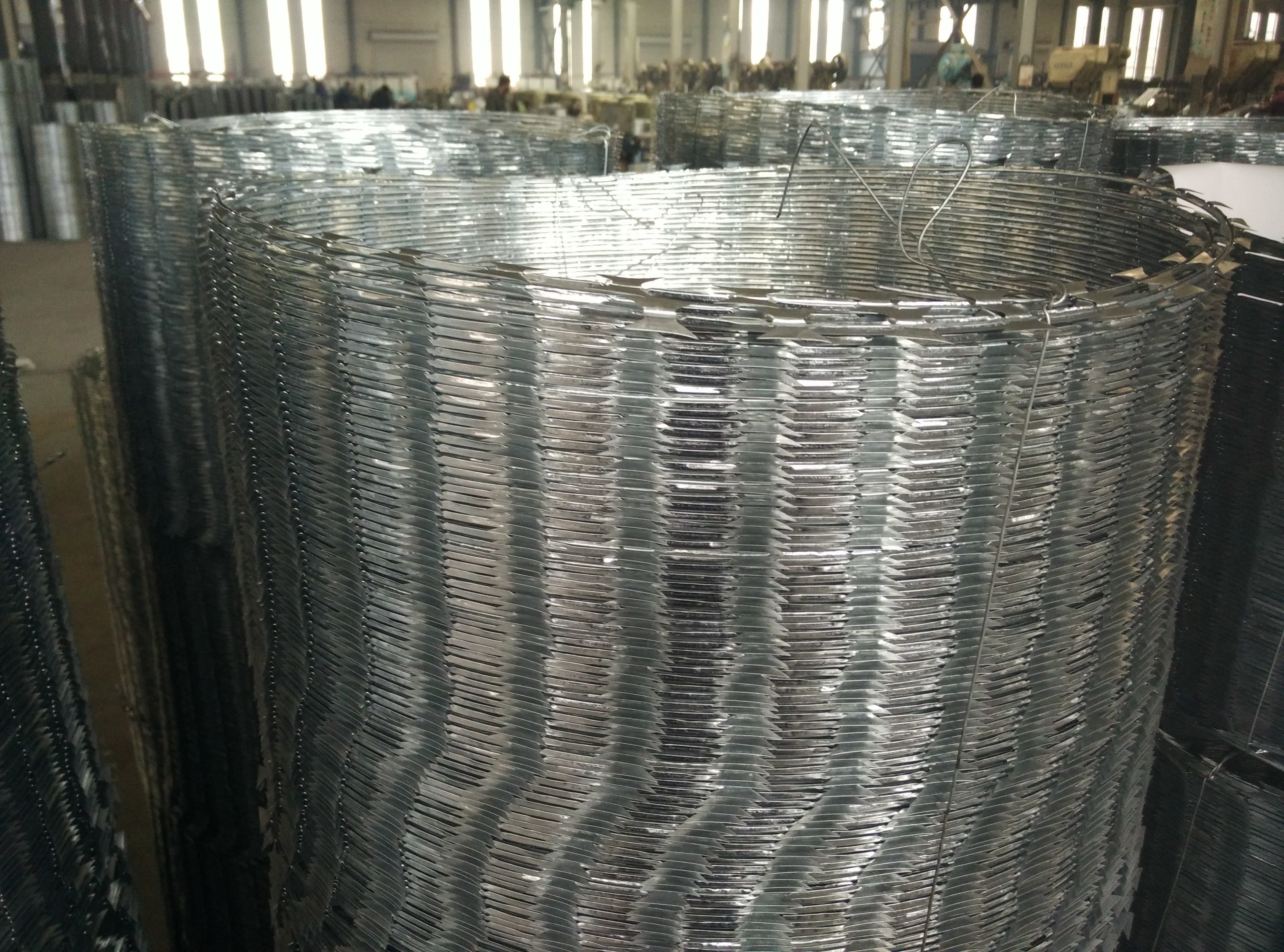

    Product Images:

    Hot Dipped Galvanized Razor Blade Fencing Wire Barbed 65mm Length CBT 65Hot Dipped Galvanized Razor Blade Fencing Wire Barbed 65mm Length CBT 65

    Hot Dipped Galvanized Razor Blade Fencing Wire Barbed 65mm Length CBT 65

    Hot Dipped Galvanized Razor Blade Fencing Wire Barbed 65mm Length CBT 65

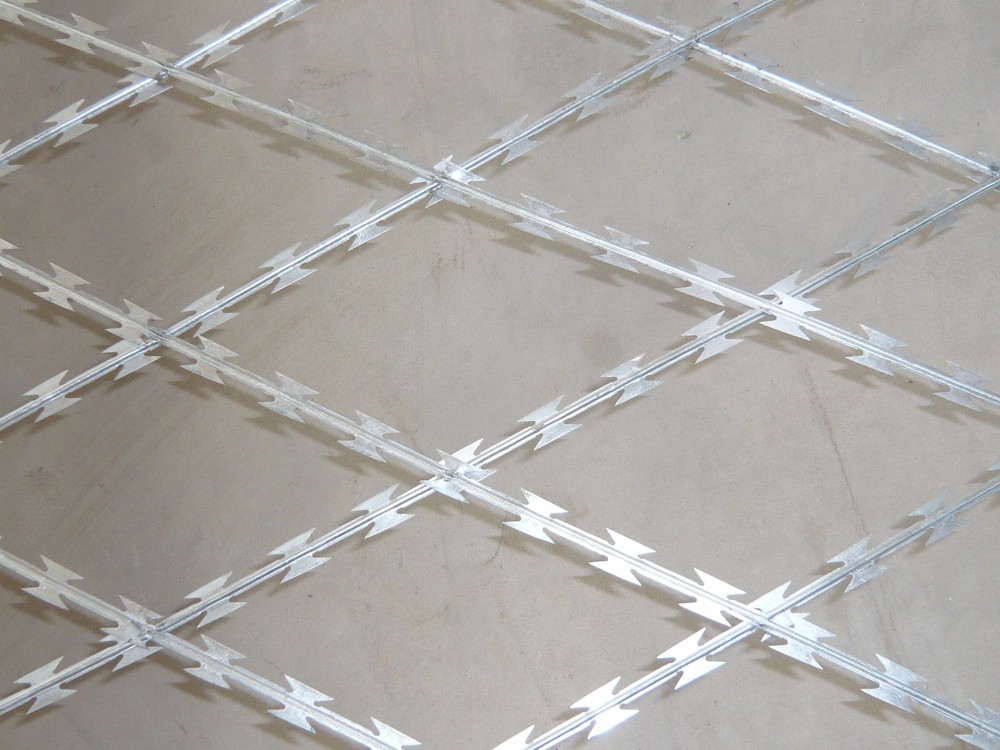

    Concertina Wire Type


    Hot Dipped Galvanized Razor Blade Fencing Wire Barbed 65mm Length CBT 65Hot Dipped Galvanized Razor Blade Fencing Wire Barbed 65mm Length CBT 65

    Hot Dipped Galvanized Razor Blade Fencing Wire Barbed 65mm Length CBT 65Hot Dipped Galvanized Razor Blade Fencing Wire Barbed 65mm Length CBT 65

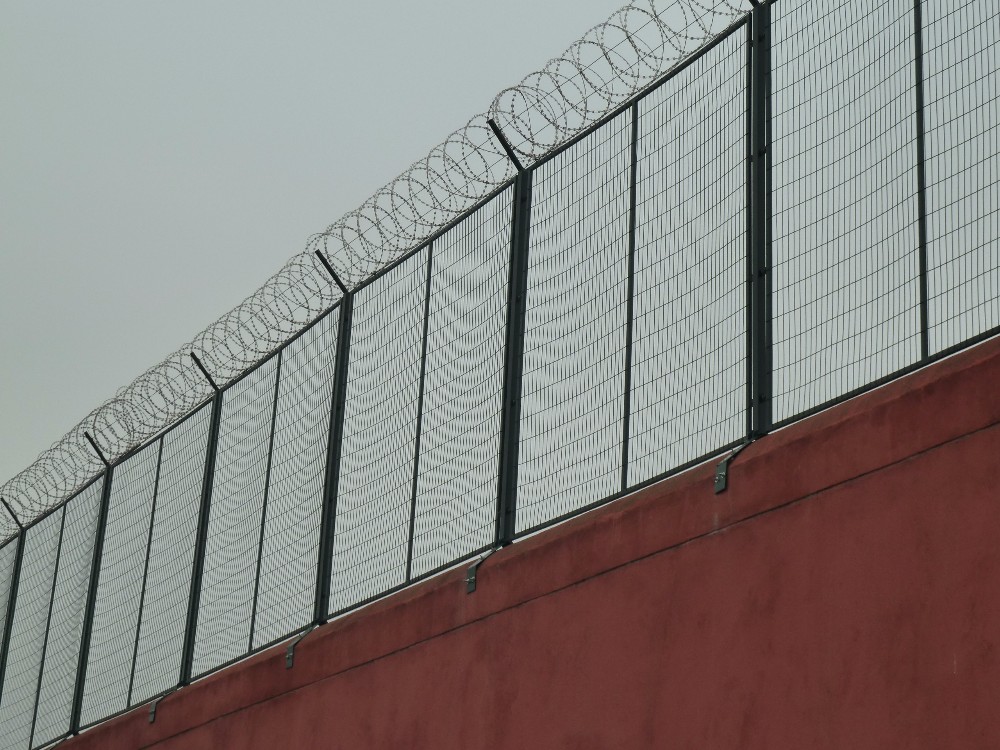

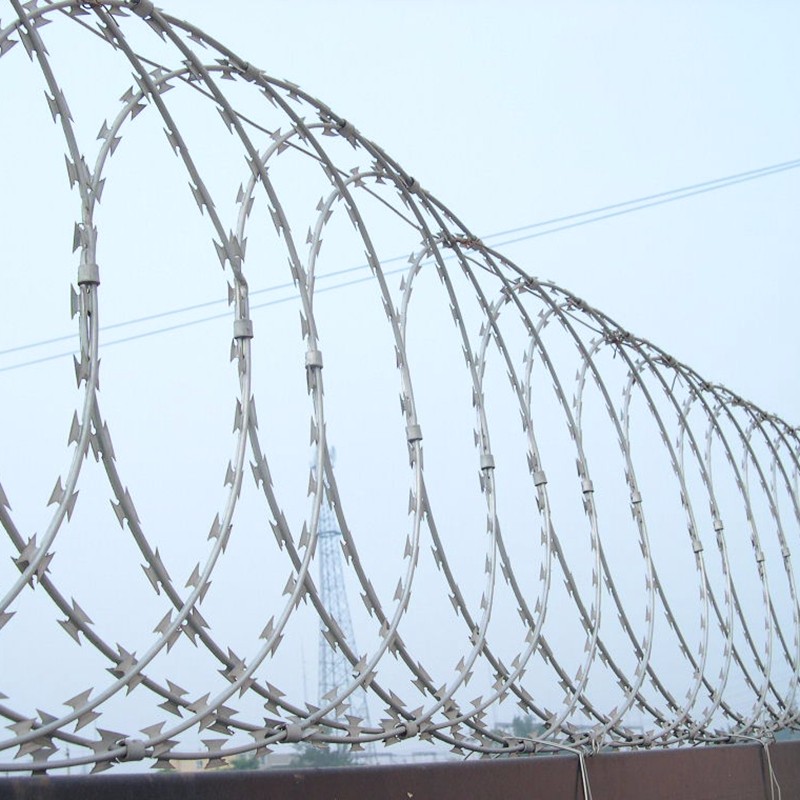

    Concertina Wire USE

    Hot Dipped Galvanized Razor Blade Fencing Wire Barbed 65mm Length CBT 65Hot Dipped Galvanized Razor Blade Fencing Wire Barbed 65mm Length CBT 65

    Hot Dipped Galvanized Razor Blade Fencing Wire Barbed 65mm Length CBT 65

    Packaging & Shipping

    Razor blade wire common packages:


    1.Waterproof Paper +Woven Bags or carton

    2.Usually one 20 feet container can load 25 tons razor wire tape.
