Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil

    Buy cheap Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil from wholesalers

    Buy cheap Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil from wholesalers
    • Buy cheap Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil from wholesalers
    • Buy cheap Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil from wholesalers
    • Buy cheap Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil from wholesalers
    • Buy cheap Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil from wholesalers

    Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil

    Ask Lasest Price
    Brand Name : Source Wire Mesh
    Model Number : UJ-RBW006
    Certification : ISO:9001/ISO:14001/ISO:18001
    Price : $1200.00-$1400.00/TON
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 Ton/Tons per month BTO-22 razor barbed wire
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil

    Coil diameter 700MM BTO-22 Galvanized Razor Barbed Wire


    Razor Barbed Wire Product Description:


    1. Razor barbed wire is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

    2. Material: high carbon steel, galvanized steel sheet and wire, stainless steel sheet and wire. Usually, hot dipped galvanized razor barbed wire is popular in the market.

    3. Surface finished: Electro galvanized, Hot dipped galvanized, PVC coated.


    Specification List:


    Razor Wire Size Specifications
    Peference Model
    Thickness (mm)
    Wire Diameter (mm)
    Barb Length
    (mm)
    Bard Width
    (mm)
    Bard Spacing
    (mm)
    BTO-12
    0.5±0.05
    2.5±0.1
    12±1
    15±1
    26±1
    BTO-15
    0.5±0.05
    2.5±0.1
    18±1
    15±1
    33±1
    BTO-22
    0.5±0.05
    2.5±0.1
    02±1
    15±1
    34±1
    BTO-28
    0.5±0.05
    2.5±0.1
    28
    15
    45±1
    CBT-30
    0.5±0.05
    2.5±0.1
    30
    18
    45±1
    CBT-60
    0.6±0.05
    2.5±0.1
    60±2
    32±1
    100±1
    CBT-65
    0.6±0.05
    2.5±0.1
    65±2
    21±1
    100±1
    Outside Diameter
    No. of Loops
    Standard Length per Coil
    Razor Type
    Notes

    450mm
    33
    7M-8M
    CBT-60, 65
    Single Coil
    500mm
    56
    12M-13M
    CBT-60, 65
    Single Coil
    700mm
    56
    13M-14M
    CBT-60, 65
    Single Coil
    960mm
    56
    14M-15M
    CBT-60, 65
    Single Coil
    450mm
    56
    8M-9M (3clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    500mm
    56
    9M-10M (3clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    600mm
    56
    10M-11M (3clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    600mm
    56
    8M-10M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    700mm
    56
    10M-12M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    800mm
    56
    11M-13M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    900mm
    56
    12M-14M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    960mm
    56
    13M-15M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    980mm
    56
    14M-16M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type

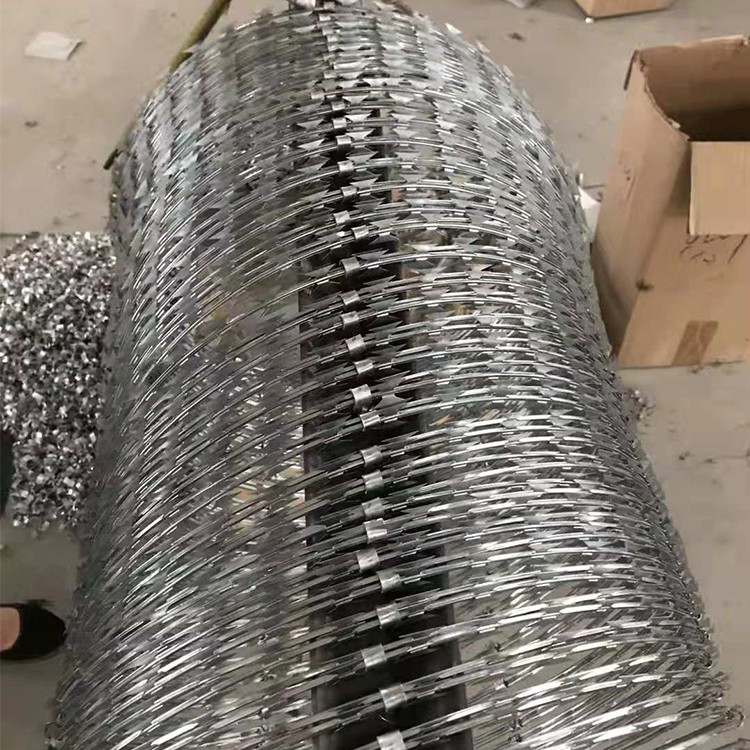

    Product Images:


    Electro Galvanized Razor Barbed Wire BTO 22 700MM CoilElectro Galvanized Razor Barbed Wire BTO 22 700MM Coil

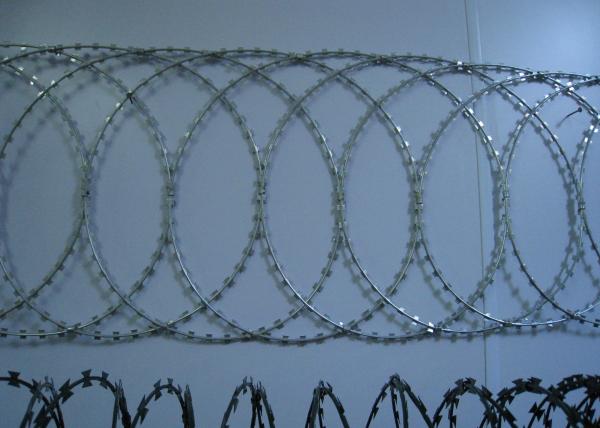

    Concertina Wire Type

    Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil

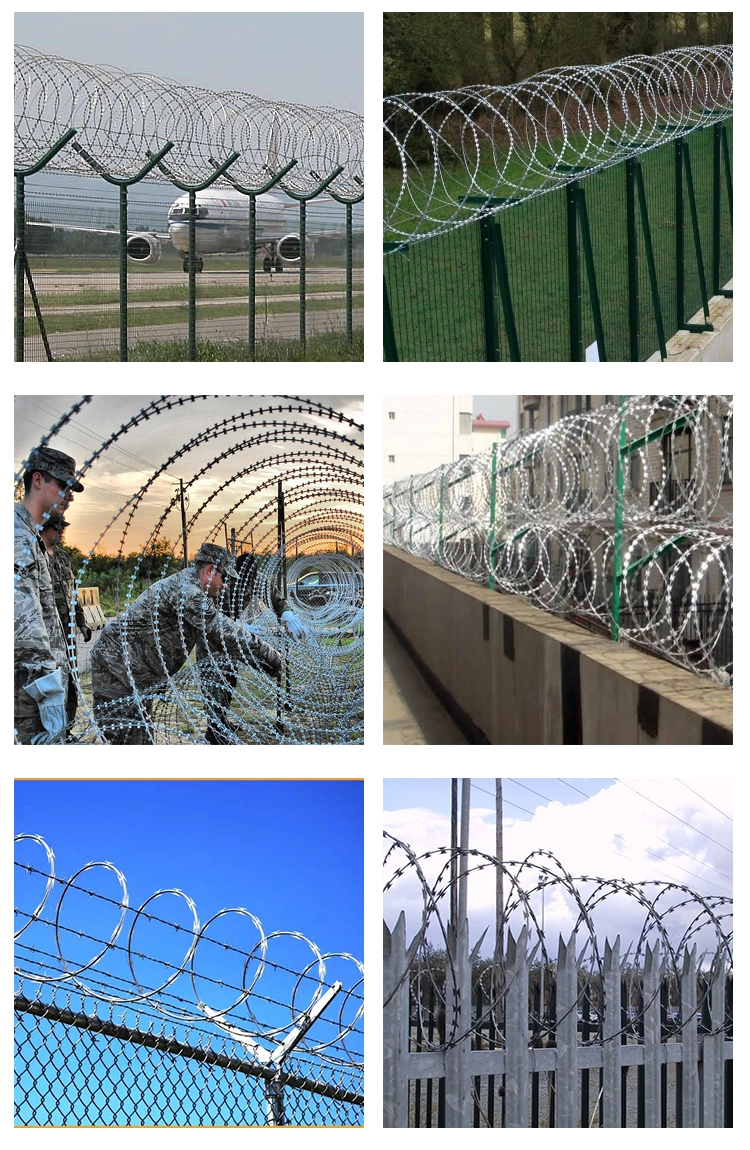

    Concertina Wire Use:


    Electro Galvanized Razor Barbed Wire BTO 22 700MM Coil

    Packing & Delivery:

    Electro Galvanized Razor Barbed Wire BTO 22 700MM CoilElectro Galvanized Razor Barbed Wire BTO 22 700MM Coil

    Electro Galvanized Razor Barbed Wire BTO 22 700MM CoilElectro Galvanized Razor Barbed Wire BTO 22 700MM Coil


    Our company was established in 2002. Mainly producing wire mesh products, our company is a synthetic enterprise which integrates production, research and foreign trade together. Our main products are Stainless Steel Wire Mesh,Decorative Wire Mesh,Welded Wire Mesh,Razor Barbed Wire and sintering mesh ,hexagonal mesh, sintering mesh, and further processed products which are commonly exported to Korea. Our products are well distributed to America, Europe, the Middle East, Southeast Asia and Africa markets. We sincerely invite you to visit our factory and make good benefits for both of us.
