BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

    Buy cheap BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating from wholesalers

    Buy cheap BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating from wholesalers
    • Buy cheap BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating from wholesalers
    • Buy cheap BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating from wholesalers
    • Buy cheap BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating from wholesalers

    BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

    Ask Lasest Price
    Brand Name : Source Wire Mesh
    Model Number : UJ-RBW005
    Certification : ISO9001
    Price : $1200.00-$1400.00/TON
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 Ton/Tons per Month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

    Coil diameter 450MM BTO-22 PVC Powder Coating Razor Barbed Wire


    Razor Barbed Wire Product Description:


    Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.


    Concertina Wire Materials:


    Blade: steel plate by one-time punching moulding
    or stainless steel plate by one-time punching moulding
    Wire: hot dipped galvanized metal wire
    hot dipped galvanized steel wire or stainless steel wire


    Specification List:


    Razor Wire Size Specifications
    Peference Model
    Thickness (mm)
    Wire Diameter (mm)
    Barb Length
    (mm)
    Bard Width
    (mm)
    Bard Spacing
    (mm)
    BTO-12
    0.5±0.05
    2.5±0.1
    12±1
    15±1
    26±1
    BTO-15
    0.5±0.05
    2.5±0.1
    18±1
    15±1
    33±1
    BTO-22
    0.5±0.05
    2.5±0.1
    02±1
    15±1
    34±1
    BTO-28
    0.5±0.05
    2.5±0.1
    28
    15
    45±1
    CBT-30
    0.5±0.05
    2.5±0.1
    30
    18
    45±1
    CBT-60
    0.6±0.05
    2.5±0.1
    60±2
    32±1
    100±1
    CBT-65
    0.6±0.05
    2.5±0.1
    65±2
    21±1
    100±1
    Outside Diameter
    No. of Loops
    Standard Length per Coil
    Razor Type
    Notes

    450mm
    33
    7M-8M
    CBT-60, 65
    Single Coil
    500mm
    56
    12M-13M
    CBT-60, 65
    Single Coil
    700mm
    56
    13M-14M
    CBT-60, 65
    Single Coil
    960mm
    56
    14M-15M
    CBT-60, 65
    Single Coil
    450mm
    56
    8M-9M (3clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    500mm
    56
    9M-10M (3clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    600mm
    56
    10M-11M (3clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    600mm
    56
    8M-10M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    700mm
    56
    10M-12M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    800mm
    56
    11M-13M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    900mm
    56
    12M-14M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    960mm
    56
    13M-15M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    980mm
    56
    14M-16M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type

    BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

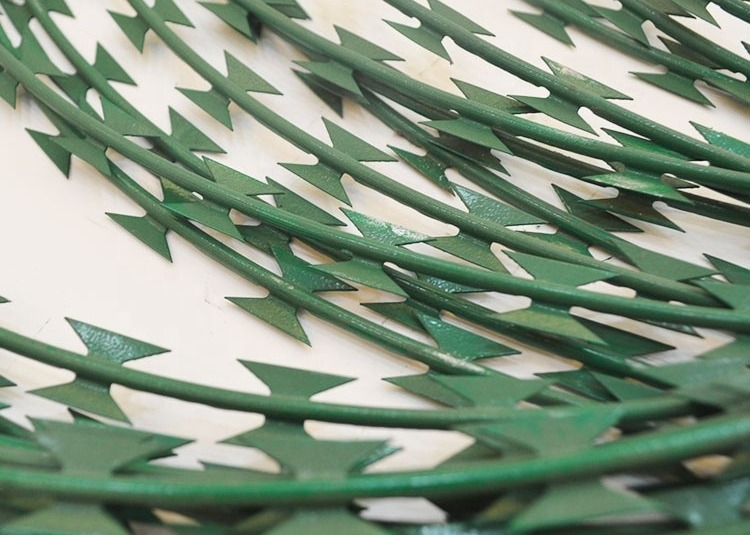

    Product Images:

    BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

    BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

    BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating


    Concertina Wire Type


    BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC CoatingBTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

    BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC CoatingBTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating


    Concertina Wire Use:


    BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

    Packing & Delivery:

    BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC CoatingBTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating

    BTO 22 Concertina Razor Barbed Wire 450MM Coil PVC CoatingBTO 22 Concertina Razor Barbed Wire 450MM Coil PVC Coating


    Our company was established in 2002. Mainly producing wire mesh products, our company is a synthetic enterprise which integrates production, research and foreign trade together. Our main products are Stainless Steel Wire Mesh,Decorative Wire Mesh,Welded Wire Mesh,Razor Barbed Wire and sintering mesh ,hexagonal mesh, sintering mesh, and further processed products which are commonly exported to Korea. Our products are well distributed to America, Europe, the Middle East, Southeast Asia and Africa markets. We sincerely invite you to visit our factory and make good benefits for both of us.
