    U Type Flat Wire Honeycomb Conveyor Belt 1.5mm Thickness

    Ask Lasest Price
    Brand Name : Source wire mesh
    Model Number : UJ-CWB002
    Certification : ISO:9001
    Price : $30-$45/m
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500m in one week
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    U Type Flat Wire Honeycomb Conveyor Belt 1.5mm Thickness


    U Type Chain or Honeycomb conveyor belt


    stainless steel honeycomb conveyor belt/ honey comb belt wire mesh

    Honeycomb belting, also known throughout the industry as Flat Wire belting, is a straight-running belt with an extremely high strength-to-weight ratio. It is available in a wide variety of aperture configurations to suit applications as diverse as casting, baking, drainage and packaging.

    Honeycomb is constructed from formed flat wire strips connected by cross rods running through the width of the mesh. The rods are finished with either welded button edges or hooked edges.

    Belt Specification Details

    Honeycomb belt is available in a wide range of specifications. The examples listed in the following tables are the most common. Belts can be up to 5 metres wide, alternative specifications are available, please contact our Technical Sales Engineers for information

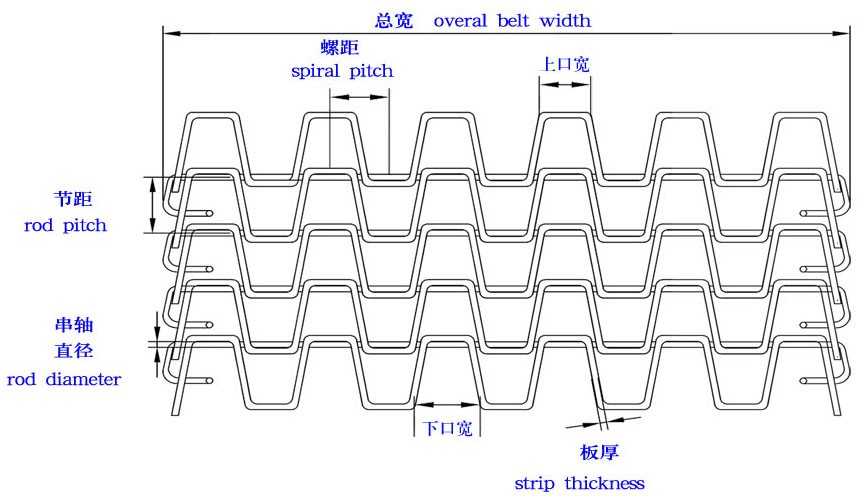

    A
    Overall belt width
    B
    Cross rod pitch
    C
    Nominal lateral pitch
    D
    Cross rod diameter
    E
    Height of flat strip material
    F
    Thickness of flat strip material
    G
    Apertures across belt width
    Specification
    European Standard(available button edge (welded washer) only)
    Cross Rod Pitch (mm)
    Nominal Lateral Pitch (mm)
    Flat Strip (mm)
    Cross Rod (mm)
    13.7
    14.6
    10x1
    3
    26.2
    15.55
    12x1.2
    4
    27.4
    15.7
    9.5x1.25
    3
    27.4
    24.7
    9.5x1.25
    3
    28.6
    15
    9.5x1.25
    3
    28.4
    22.5
    15x1.2
    4
    28.6
    26.25
    9.5x1.25
    3
    Imperial Standard (available button edge (welded washer) only
    Cross Rod
    Pitch (mm)
    Nominal Lateral
    Pitch (mm)
    Flat Strip (mm)
    Cross
    Rod (mm)
    12.85
    14.48
    9.5x1.2
    3
    13.72
    14.48
    9.5x1.2
    3
    14.22
    15.46
    9.5x1.2
    3
    28.58
    15.46
    9.5x1.2
    3
    27.53
    15.22
    9.5x1.2
    3
    26.97
    15.22
    9.5x1.2
    3
    28.58
    26.19
    9.5x1.2
    3
    26.97
    17.78
    12.7x1.6
    4.9
    26.97
    25.4
    12.7x1.6
    4.9
    28.58
    25.4
    15.9x1.6
    4.9
    38.1
    38.1
    15.9x1.6
    4.9
    50.8
    50.8
    15.9x1.6
    4.9
    76.2
    76.2
    15.9x1.6
    4.9

    Individual Specifications

    Apart from the standard sizes above we are able to provide custom built specifications and the table below gives the framework of availability. Please contact our Technical Sales team to discuss availability in detail as further restrictions do apply to flat strip section size required.

    Cross Rod Pitch
    edge type
    Cross Rod Dia. (mm)
    from (mm)
    to (mm)
    Welded
    Clinched
    3.00
    12.7
    30.0
    4.00
    13.7
    29.0
    5.00
    25.0
    28.0

    Honeycomb Drive Components

    Sprockets are available in the following sizes:
    Table of sprocket pitch circle diameters for European standard drive sprockets

    Belt Standard/Cross Rod Pitch
    teeth
    ES001
    13.7mm
    ES003
    26.2mm
    ES004/6
    27.4mm
    ES012/13
    28.6mm
    ES015
    28.4mm
    12
    52.93

    101.23
    105.87
    110.50
    109.73
    18
    78.90
    150.88
    157.79
    164.70
    163.55
    24
    104.96
    200.73
    209.92
    219.11
    217.58
    30
    131.06
    250.65
    262.13
    273.61
    271.70
    U Type Flat Wire Honeycomb Conveyor Belt 1.5mm Thickness

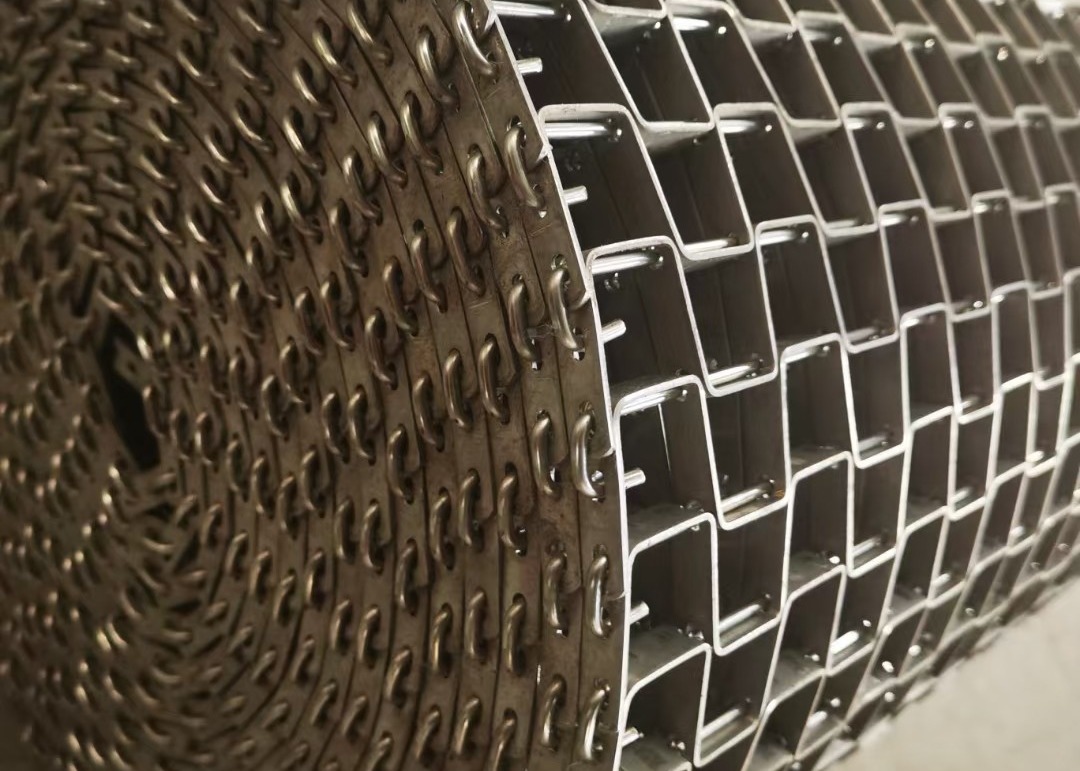

    Product Show:
    U Type Flat Wire Honeycomb Conveyor Belt 1.5mm ThicknessU Type Flat Wire Honeycomb Conveyor Belt 1.5mm Thickness
    U Type Flat Wire Honeycomb Conveyor Belt 1.5mm ThicknessU Type Flat Wire Honeycomb Conveyor Belt 1.5mm Thickness
    U Type Flat Wire Honeycomb Conveyor Belt 1.5mm Thickness
    Packing & Delivery:
    U Type Flat Wire Honeycomb Conveyor Belt 1.5mm Thickness
    U Type Flat Wire Honeycomb Conveyor Belt 1.5mm Thickness
    FAQ
    Q1. What is the advantage about your company?
    A1. Our company has professional team and professional production line.

    Q2. Why should I choose your products?
    A2. Our products are high quality and low price.

    Q3. The logo and the color can be customized?
    A3. Yes, we welcome you to sample custom

    Q4. Any other good service your company can provide?
    A4. Yes,we can provide good after-sale and fast delivery.
